New 2026 Tiffin Motorhomes GH2 22 BV

Motor Home Class B - Diesel

Stock #76185

Liberty Lake, WA

1 of 3

23ft long
Sleeps 2

Mercedes-Benz 2.0L 4 Cylinder Twin Scroll Turbo
208 HP

See All Specs

Specifications

Sleeps	2	Length	22 ft 11 in
Ext Width	7 ft 8 in	Ext Height	10 ft
Int Height	6 ft 3 in	Exterior Color	SELENITE GREY
Hitch Weight	5000 lbs	GVWR	9050 lbs
Fresh Water Capacity	26 gals	Grey Water Capacity	33 gals
Black Water Capacity	4.5 gals	Tire Size	LT 245/70R 17
Fuel Type	Diesel	Engine	Mercedes-Benz 2.0L 4 Cylinder Twin Scroll Turbo
Chassis	Mercedes Benz Sprinter 2500 AWD	Horsepower	208 hp
Fuel Capacity	24.5 gals	Torque	332 ft-lb
Refrigerator Type	12V Refrigerator with Freezer	Refrigerator Size	3.1 cu ft
Cooktop Burners	1	Number of Awnings	1
Water Heater Type	Bypass	AC BTU	15000 btu
Awning Info	Girard Side-mounted Powered Patio	Gross Combined Weight	13930 lbs
Shower Type	Wet/Bath Shower	Electrical Service	30 amp

Description

Tiffin Motorhomes GH2 Class B diesel motorhome 22 BV highlights:

Power Lift Bed
Bench Seat
Microwave and Air Fryer
Pantry/ Closet
All-Wheel Drive

You and your partner will love this motorhome. The rear power lift bed offers effortless access to a comfortable sleeping area, with ample gear and garage storage below. A wet bath provides convenience, while in the kitchen area, you will find various amenities like a stainless steel single bowl sink and a pantry closet for keeping all your essentials organized. Further, overhead cabinets offer additional storage for your belongings while the microwave makes meal prep easy, and an outdoor table provides the perfect spot for alfresco dining and relaxation. With its functional design and comfortable amenities, this motorhome is perfect for extended road trips or weekend getaways.

The Tiffin GH2 Class B Diesel motorhomes feature cutting-edge technology, including a 3,000-watt Victron pure sine wave inverter/charger with smart shunt for accurate state-of-charge tracking and a Victron touchscreen control panel with solar controller and tank sensors. The integrated SeeLevel tank monitor keeps you informed about your fuel and water levels. Sleek, heated, and electrically adjustable side-view mirrors provide effortless convenience, and exquisite premium hardwood plywood with high-pressure laminate lower cabinets adds a touch of sophistication, plus, the dazzling interior multicolor accent lighting creates a vibrant and inviting atmosphere. In addition, the sumptuous heated leather seats with electronic controls offer unparalleled comfort, and the Mercedes-Benz MBUX multimedia system features a 10.25” touchscreen for seamless connectivity. Further, the kitchen offers a versatile microwave/air fryer combo, and a 12-volt roof vent fan provides culinary flexibility and ventilation.

Features

Standard Features (2026)

Chassis and Drivetrain Features

Feature-Loaded Mercedes-Benz® 2500 Extended Sprinter Cargo Van Chassis
Mercedes-Benz® 2.0L 4 Cylinder Twin Scroll Turbo 208HP Diesel Engine with 332 lb-ft Torque
All-Wheel Drive
220 Amp Primary / 280 Amp Secondary Nations Alternator w/Wakespeed Converter
Mercedes-Benz® 9-Speed Shiftable Automatic Transmission
Agile Offroad Hood Struts
Front and Rear LT 245/70R 17 BF Goodrich®All-Terrain T/A® KO2 Tires
12-Volt AGM Chassis Battery
Front Radiator
Four Wheel ABS Brakes
Manual Parking Brake
Active Brake Assist (Collision Mitigation)
Active Distance Assist Distronic® (Adaptive Cruise Control)
Hill Start Assist
Attention Assist
Traffic Sign Assist
Load Adaptive Electronic Stability Program (ESP)
High Beam Assist
Active Lane Keeping Assist
Tire Pressure Monitoring
180 Degree Rear Door Hinge
All Chassis Undercarriage Penentration Points Fully Coated/Sealed At Tiffin Factory
Custom Offroad Tiffin Adventure Wheels

Owl-Ready Aftermarket Compatibility

Optimized For Easy Aftermarket Upgrade to 45-Gallon Fuel Tank
Mounting Plates For Owl Rear Door Components Preinstalled

Chassis and Drivetrain Options

Agile Offroad Fox Shocks 2.5" Rear Shocks Replacement w/Front Auxiliary Shocks (Optional)

Electrical Features

Hydronic Heating & Electronic Appliance Equipped Coach
3,000-Watt Victron Pure Sine Wave Inverter/Charger w/Smart Shunt for Accurate State-of-Charge Tracking
Victron Touchscreen Control Panel w/Solar Controller & Tank Sensors Integrated
15KBTU Energy-Efficient Air Conditioner with Heat Pump and Bluetooth Capability
Wall-mounted Thermostat with Built-in Temperature Sensor
Diesel Heat Exchanger
SmartPlug® Detachable 30-Amp Shore Power Cord
330-Watt Solar with MPPT Solar Controller
Mercedes-Benz® Wireless Internet Access
Roof Port Wiring Access for Aftermarket Electronics
12-Volt Breaker Panel
12-Volt Disconnect Switch
USB Receptacles Throughout Coach
Wire Prep for Starlink® Mini

Owl-Ready™ Aftermarket Compatibility

Pre-Wired For Always-On Wolfbox Rearview Camera

Internet & Phone

Factory-Installed Starlink® Mini w/Magnetic Roof Mount (Optional)

Battery Options

540-Amp Hour Battle Born Lithium-Ion Battery Kit
810-Amp Hour "Max Power" Battle Born Lithium-Ion Battery Kit (Optional)

Plumbing

Diesel Heat Exchanger
Water Heater Bypass System
Water Filter
Water Pump
Low-point Water Drain Lines
Gravity Water Fill
Exterior Water Fill Valve
SeeLeveL™ Tank Monitor
Fresh Water Hookup for City Water and Tank Fill
Sewer Hose Storage
Galley Sink Drain Macerator Pump
Fresh Water Recirculation System (Showermiser)

Exterior

(1) Girard® Side-mounted Powered Patio Awning with Integrated LED Lighting
Rugged Offroad Roof Rack
Tinted Acrylic Windows
Single-Row Low-Profile Light Bar
Exterior Patio Light
Fog Lights
LED Lights Under Exterior Running Boards
Heated, Electrically Adjustable Side-view Mirrors
Rolef Bug Screen Door Package
Fixed Side-Mounted All-Welded Ladder
Rear Mud Guards
Low-Profile Running Board with 12-Volt Lighting
Rugged Exterior Lining On Lower Panels
Diamondshield Black Front Hood Wrap
Complete In-House Paint Re-Coat At Tiffin Factory After Completion
Custom Fiberglass Flares w/Painted Chassis Intrusion Cuts
ARB On-Board Air Compressor w/ Front and Rear Chucks (Optional)
Offroad Front Bumper Grill-Mounted LED Lights (Optional)
Paint Options: Blue Grey, Arctic White, Selenite Grey, Stone Grey, Pebble Grey/Camel Tan (Optional)

Interior

Stargazer Interior Décor Package
Premium Hardwood Plywood w/High-Pressure Laminate Lower Cabinets
Large Floor-to-Ceiling Wardrobe Closet
Black Powder Coated Aluminum Upper Cabinet Frames
Grey Nickel Plate Thermoplastic Polyolefin Flooring
Dimmable LED Lighting
Interior Multicolor Accent Lighting
Carbon Monoxide Detector
LPG Leak Detector
Smoke Detector
Fire Extinguisher
Solar Shades
Powered Roof Vents
Solid Surface Countertop
Headliner Curtain Rod
Entry Step Kick Plate With Tiffin Logo
Screw Retention Backer Added For Common Aftermarket Floor Mat Options

Driver's Compartment

Heated Leather Seats with Electronic Controls
Swivel Bases for Driver and Passenger Seats
Leather Wrapped Steering Wheel with Integrated Controls
Keyless Start
Rain Sensor for Windshield Wipers
Automatic LED Headlights
Parking Package with 360° View Camera
Interior Rear-view Mirror
Crosswind Assist
Driver and Passenger Air Bags
Blind Spot Monitoring System
Emergency Call System
Smartphone Integration For Apple Carplay® and Android™ Auto
Mercedes-Benz® MBUX Multimedia System with 10.25” Touchscreen
Tray for Smartphones with Charging Ports
Intelligent Navigation
Powered Windows
Door-mounted Driver and Passenger Assist Handles
Powered Door Locks
Instrument Cluster with Color Display
Upgraded Audio System - 2x 5&1/4" JBL Speakers, Subwoofer, & Amplifer (Optional)

Dinette and Living Area

Removable Lagun Swivel Table w/Extended Leg
Overhead Cabinets w/110V Outlet, 12V USB, 12V Cigarette Lighter Outlet, Roof Access Port
Control Panel w/Light Switches, Victron & Heat Exchanger Control Panels
Bench Seating in Living Area

Kitchen

12-Volt, 3.1-Cubic Foot Refrigerator with Freezer and Integrated Whiteboard
Microwave/Air Fryer Combo
Portable Single-Burner Induction Cooktop
12-Volt Roof Vent Fan
Stainless Steel Single Bowl Sink and Faucet with Built-in Sprayer
Galley Overhead Cabinets with Rigid Aluminum Frame
Removable Bamboo Counter Extension / Cutting Board
Fold-Down Exterior Table

Bedroom

49" x 79" Power Lift Bed with Gear Garage Below
Hidden Pull-Out Step For Bed
Van Essentials Black Aluminum L-Track
Black Powder Coated Aluminum Battery & Tank Covers
Custom Black Powder Coated Rear Water Control Panel
Black Powder Coated Slide-Out Cargo Tray (Optional)

Bathroom

24" x 36" Wet Bath with Toilet Platform
Rolef Fabric Shower Doors
Shower Converts To Closet - Shelves Included
Handheld Shower Head w/On-Off Water Flow Button Independent Of Temperature Control
Shower Skylight
Cassette Toilet
Dry-roll Toilet Paper Dispenser
Roof Vent Fan
Water-Tight Storage Compartment

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

We will be lifelong customers, no doubt!
We have been RnR customers for close to 3 decades, 5 different RV's.
Not only have they taken great care of us through trade ins and purchases, but the service department has been wonderful.
We have been blessed to have Rob Skellenger as our Service rep, always taking care of us.
We just picked up

Marty
Shout out to Jason in parts
Shout out to Jason in parts, who was nice and helpful! He found me the right part and did it with a smile

Megan
5 star review
Our 2021 Fleetwood Bounder 35K developed some engine power issues. Check engine light started to flash and we experienced weak power starting from a stop and going up hills. Traveling east in the Liberty Lake, WA area. Stopped at a Ford dealership(we have the “Godzilla engine”) and learned we had four

Wayne

We are here to help, call us at
509-927-9000 or Contact Us

We are here to help!

509-927-9000
Contact Us
Click Here For Best Price

Any price listed excludes sales tax and title/registration fees. Prices listed include dealer prep and delivery fees. Manufacturer and/or stock photographs, 360 tours, and descriptions/specifications may be used and may not be representative of the particular unit being viewed. Please confirm specific unit details with your dealer representative. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available. ALL new unit payments above $20,000 based off of 180m, 7.99%, 20% down payment. ALL new unit payments under $20,000 based off of 120m, 7.99%, 20% down payment.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2026 Tiffin Motorhomes GH2 22 BV

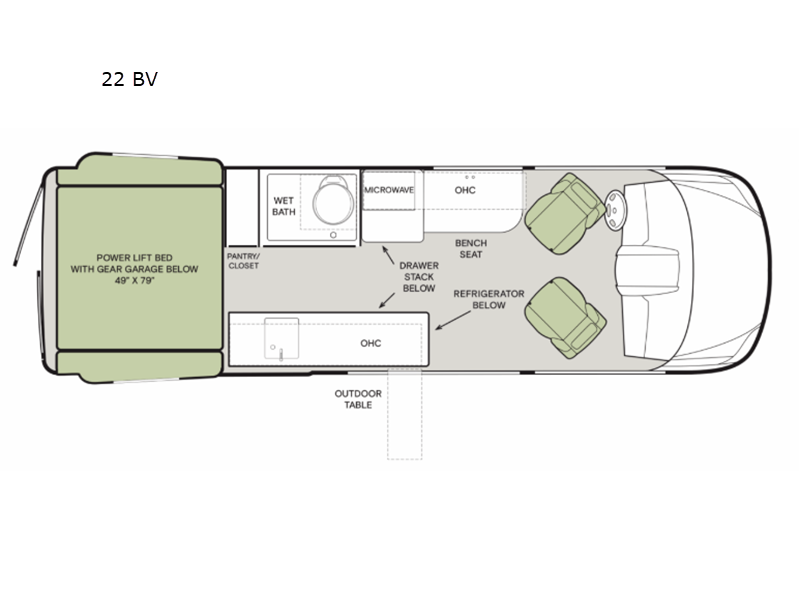

22 BV Floorplan
